Description

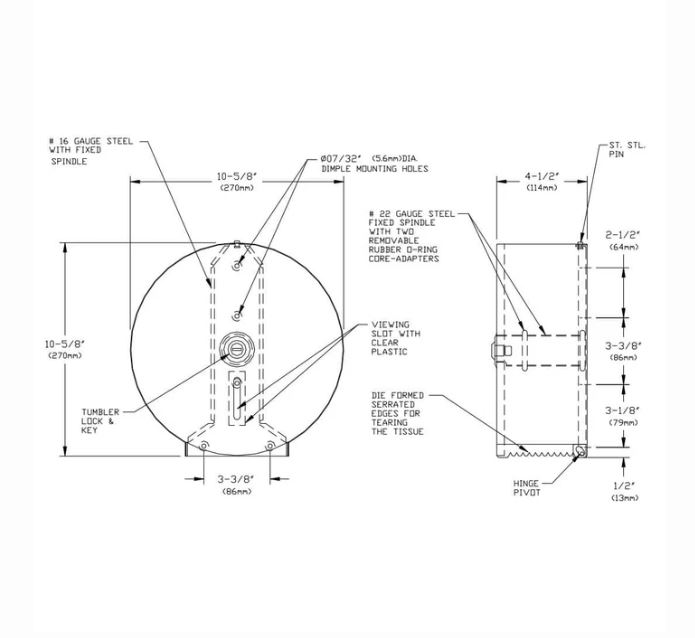

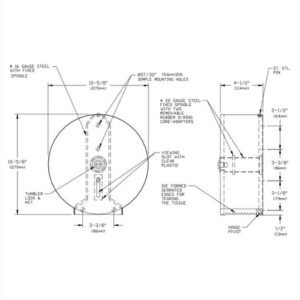

Surface Mounted Jumbo-Roll Toilet Paper Dispenser

• Hold one (1) roll up to 10″ (254) dia with 1-5/8″ (41.3) dia. core or 2-1/4″ (57) dia. core.
• Cover shall be fabricated of type 304 stainless steel alloy 18-8, 22 gauge with a № 4 satin finish.
• Rear of cabinet shall have five (5) mounting holes to suit #8 or #10 flat head screws.
• Cover shall be of one piece construction hung on stainless steel pin hinges and shall be held closed by a tumbler lock keyed to other ASI washroom equipment with key provided.
• A viewing slot with clear plastic window shall be provided.
• Unit shall accommodate smaller core size roll by removing the rubber core adapter “O” rings.
• Opening on bottom of cabinet shall have stainless steel teeth for toilet tissue tearing on both sides.
• Cover at top shall have shoulder pin to interlock back plate when closed.
